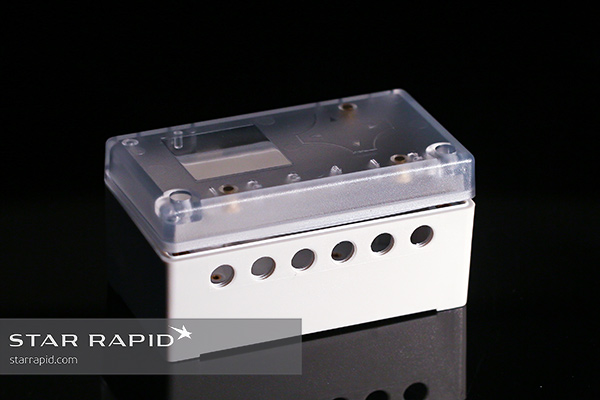

Plastic Enclosure for Wireless Telemetry Sensors

Services:  Toolmaking (CNC / EDM)Plastic Injection Molding

Materials:  Lexan 925AU-116 Polycarbonate

Color:  RAL 7035 (light grey) / Clear / Natural

The Client

Powelectrics Sensing and Telemetry Solutions provide sensor data and control solutions, spread across diverse sectors and applications. Powelectrics offer award-winning telemetry hardware and MetronView, a proprietary data platform, with data and alarms visible to users on any web-enabled device.

The Product

The Metron4, Powelectrics flagship IoT hardware device, makes remote monitoring simple and affordable. It interfaces with thousands of sensor types, taking regular readings, typically of level, temperature, pressure, humidity, vibration and energy consumptions and often for tank level monitoring and condition monitoring purposes. Data is transmitted over the 2G and 4G mobile phone networks and data and alerts delivered via the Metronview cloud.

The innovative Metron4 m2m hardware offers 4 analogue inputs, expansion cards for pulse counting and options for RS232, RS485 and CANBUS integration. With solar, battery and external power options and operational temperatures – 25 to +65°C, Metron4 is ideal in a vast range of global environments and applications.

Powelectrics customers use this reliable source of data and alarms to monitor, protect and improve the performance of essential assets and critical processes.



The Product

The Metron4, Powelectrics flagship IoT hardware device, makes remote monitoring simple and affordable. It interfaces with thousands of sensor types, taking regular readings, typically of level, temperature, pressure, humidity, vibration and energy consumptions and often for tank level monitoring and condition monitoring purposes. Data is transmitted over the 2G and 4G mobile phone networks and data and alerts delivered via the Metronview cloud.

The innovative Metron4 m2m hardware offers 4 analogue inputs, expansion cards for pulse counting and options for RS232, RS485 and CANBUS integration. With solar, battery and external power options and operational temperatures – 25 to +65°C, Metron4 is ideal in a vast range of global environments and applications.

Powelectrics customers use this reliable source of data and alarms to monitor, protect and improve the performance of essential assets and critical processes.



Plastic Injection Molding

We made four plastic injection molds for this project, inclusive of lid, base, and two internal dividers. All were made from the same Lexan polycarbonate but we used different pigments to chance the look, from completely transparent to a light medium-gray.

Molding the Box

The box has a textured pattern that we applied using MoldTech photetching.

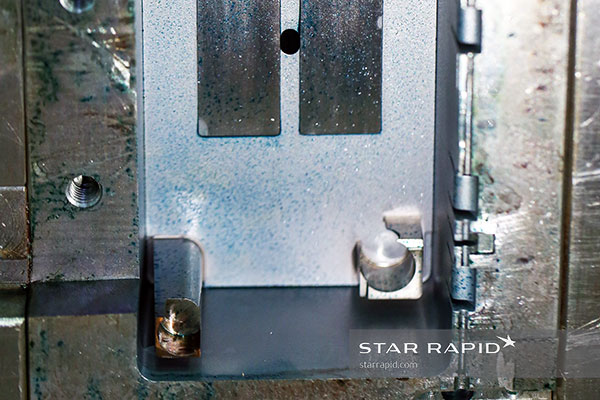

Cavity detail of Metron 4 mold
MoldTech photoetching was used to create the frosted pattern inside this tool cavity.

With a heavy surface texture like this, it is necessary to increase the draft angle on the walls of the mold cavity so that the part can be cleanly released.

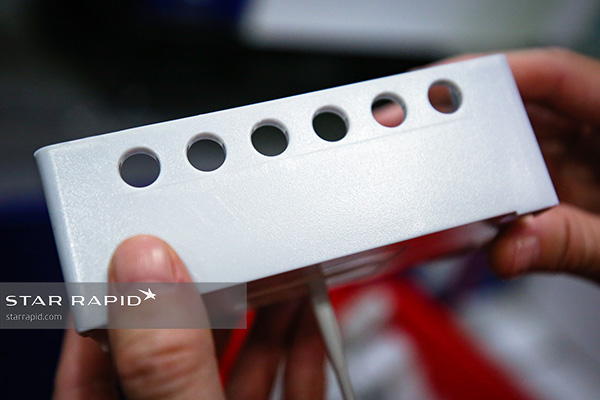

Metron4 surface quality detail on the main box
The rough surface texture provides a nice grip on the box.

The separator screen was rough milled on our 5-axis CNC milling center, which allowed us to machine all of the beveled faces on the grid very quickly.

Molding the Lid

The lid is mostly frosted, with a clear polished window that will be used for an LCD display to be installed later.

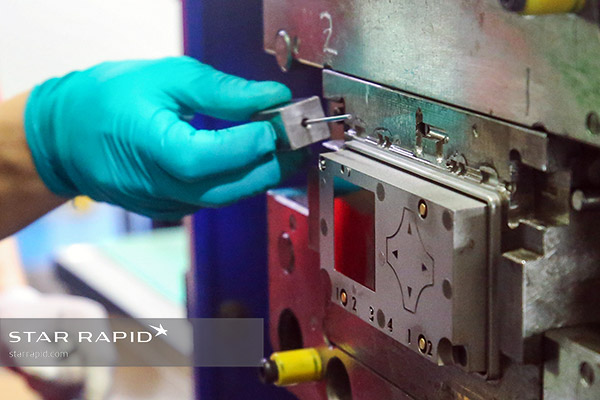

Hand-loaded inserts for Metron4 lid
Hand-loaded inserts for the hinges

We used hand-loaded inserts to make the hole for the hinges. We want these areas not to be filled with plastic, so we can install the hinge pin later.

Internal Dividers

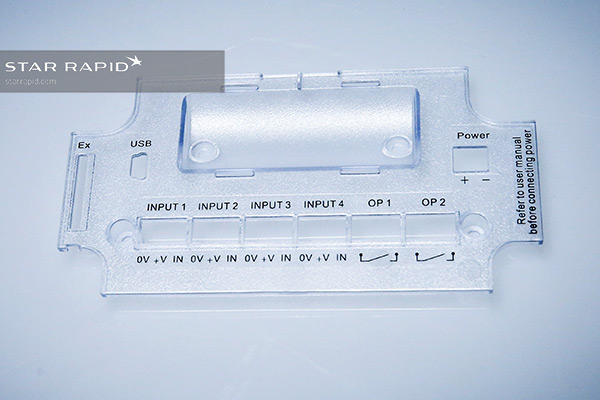

Metron 4 divider
This divider is silk screen printed to clearly show the layout of all internal connections.

How It’s Built

We’re proud to have worked together with Powelectrics for years to make enclosures into which they mount their electronics, display interface and power supply.

This enclosure is much more than just a plastic box. A lot of careful design engineering and manufacturing went into each one so that they can perform in the field while standing up to hard daily use. Let’s take a look at some of the details that make this product so successful.

Construction

The walls of the Metron4 are 4mm thick, made from strong Lexan polycarbonate.

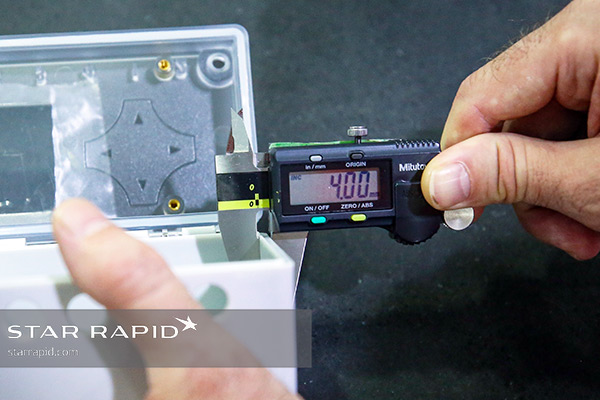

Measuring Metron4 wall thickness
Measuring wall thickness

Here the enclosure is holding almost 60Kg, and can easily take much more.

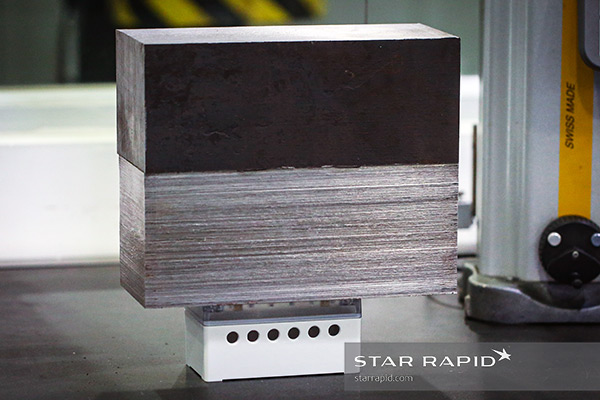

Load testing the Metron2
Checking the load limit with two blanks of P20 tool steel

Reinforced bosses have threaded brass inserts used for mounting internal hardware and for bolting the lid down.

Notice also the thick galvanized hinge pins make a strong and corrosion-resistant link between body and lid.

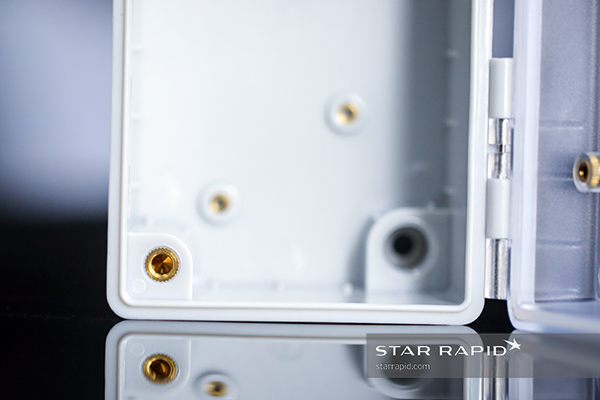

Threaded inserts on the Metron4
Threaded brass inserts are molded into thick corner posts

Safety

These enclosures are made from Lexan 925 AU-116. This material is UV-stabilized with excellent strength and electrical insulating properties, and also has a UL-94 VO fire safety rating.

In this test, the plastic is exposed to open flame. The resin will self-extinguish within 10 seconds after the heat source is removed. It will not drip burning plastic, and will also not outgas chlorine fumes if ignited.

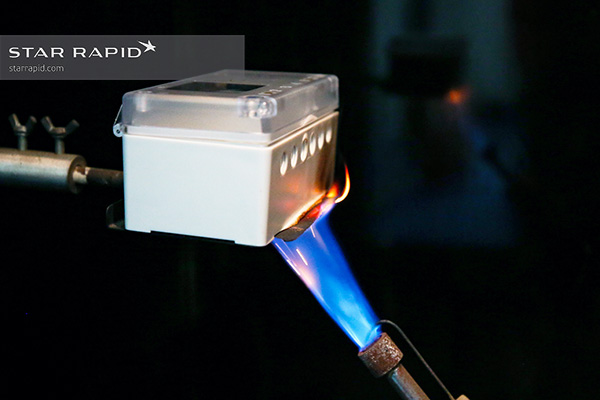

product development fire-test
Fire safety test under controlled conditions

Built to Last

Attention to detail and careful construction helped us to build a strong and durable enclosure that can last for years in demanding locations like construction sites, refineries, factories and power stations. (Even under a moving train!) We are helping to enable the Industrial Internet of Things, and we can do the same for your connected products when you upload your CAD files for a free quotation.

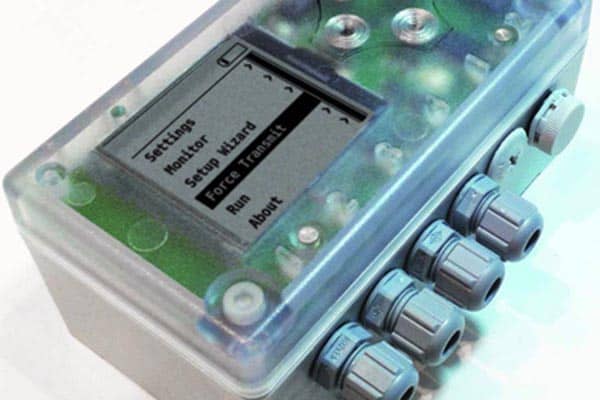

Completed Product
