Rapid Tooling For Injection Molding

What is rapid tooling? Rapid tooling is a specialty service for making certain kinds of plastic injection mold tools and finished parts in a fraction of the time it takes to make full-production volume tools. It relies on optimizing the design, fabrication, and materials to achieve maximum production efficiency and minimal downtime.

Star Rapid

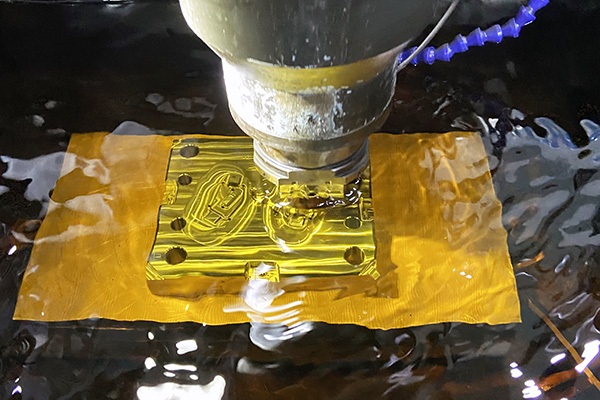

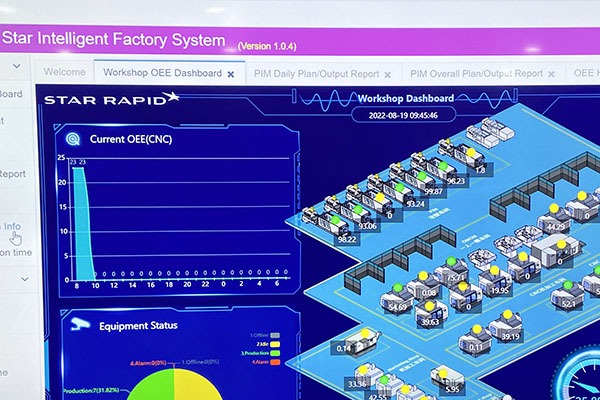

How Does Rapid Tooling Work?

Star Rapid offers a unique rapid tooling system. A single master machinist is responsible for your tool from start to finish. Using modular mold bases and P20 tool steel, a machinist can produce a finished mold in as little as ten days from the approval of design drawings. These molds use standard plastic resins and fillers to make fully functional finished parts in relatively limited quantities. There are many advantages to rapid tooling. Finished parts can be used for prototypes, product testing and certification, and as bridge production towards higher volumes. Rapid tooling injection molding also helps our clients to limit their financial exposure to new designs.

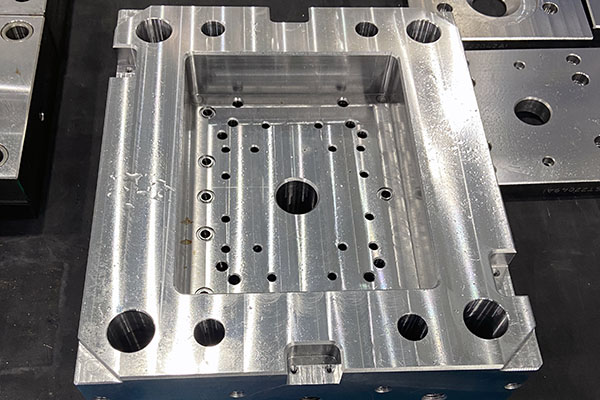

Modular unit die
Star Rapid

What Are The Limitations Of Rapid Production Tooling?

In order to achieve rapid results, there are some necessary limitations to the kinds of tools and parts that can be made using this approach. These limitations don’t mean you get an inferior tool. Rather, we simplify the development process in order to achieve the shortest possible production lead time at the least expense.

Rapid tools are two-piece molds, with at most two cavities per mold. This means there are no extra sliders or hand-loaded inserts.

The geometries must be relatively simple, not requiring sophisticated gate/runner systems or complex cooling channels.

Simple geometries allow for basic ejector pin strategies.

Simple geometries don’t require expensive MoldFlow analysis.

Rapid tools have as-machined surfaces, with minimal polishing or bead blasting.

Only the inserts are machined. They’re designed to fit into standard mold bases for ease of manufacturing and to reduce material usage.

Cooling circuits use standard cold runners, not hot runners.

Tools are machined to DIN-27681-fine standards.

Star Rapid uses only P20 steel for rapid production tooling. We do this because P20 steel is as easy and fast to the machine as aluminum, using standard cutting tools and requiring no post-machining heat treatment. Such tools are called ‘semi-hardened’. It produces an excellent surface finish, and the raw material isn’t as prone to supply disruptions. P20 steel is also equal in price to aluminum per tool. But most importantly, it’s much more durable, making a better tool that can produce more finished parts. We believe there are no practical advantages to using aluminum over steel.

There may be other minor limitations depending on the project. We review every design in advance to ensure it meets our criteria for rapid production tooling.

Rapid Tooling Mold Material: Aluminum or Steel?

Star Rapid uses only P20 steel for rapid production tooling. We do this because P20 steel is as easy and fast to the machine as aluminum, using standard cutting tools and requiring no post-machining heat treatment. Such tools are called ‘semi-hardened’. It produces an excellent surface finish, and the raw material isn’t as prone to supply disruptions. P20 steel is also equal in price to aluminum per tool. But most importantly, it’s much more durable, making a better tool that can produce more finished parts. We believe there are no practical advantages to using aluminum over steel.
