Plastic Injection Molding Surface Finish: Making and Measuring Textures For Injection Molding

All plastic injection molded parts have a surface texture created by the tools that made them. To get the surface finish and texture that you want from injection molding, it’s important for you to learn how we make and measure such finishes in our inspection department. At Star Rapid, we follow the finishing standards of molding created by the Plastics Industry Association (formerly SPI).

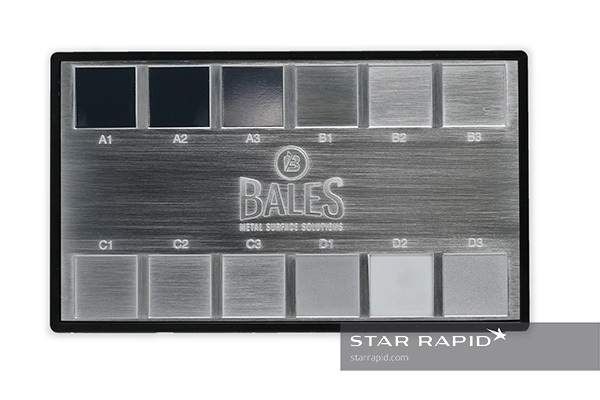

Star Rapid uses surface roughness comparators like these from Bales.
Standard PIA comparators. These are still commonly referred to as the SPI system.

What is The Plastics Industry Association?

The Plastics Industry Association (PIA) is an independent trade organization, educational resource and regulatory body based in the United States. They’ve created standards and guidelines for surface finishes on injection molding tools. These are used to measure the typical kinds of finishes that can be applied to mold tools and the parts made from those tools.

What Are the Injection Molding Surface Finish Categories?

In the PIA classification system of surface finishes on molding tools, there are four major grades: A, B, C and D. Group A finishes are made with diamond buffing, B with grit sandpaper, C with grit sanding stones, and D with pressure blasting using glass beads or aluminum oxide grains.

How Do Different Surface Finishes on Mold Tools Affect Product Cost?

The higher you go in the classification system of surface finishes for mold tools, the more time and effort it takes to produce the finish. In fact, each step of refinement requires first completing the step preceding it. There are no shortcuts here so the costs are additive. Let’s see how each finish is done.

Finishes Created by Polishing

Category A is made with diamond buffing, and is considered to be the highest standard grade, the most shiny or glossy. Part of this is due to the fine grain of the diamond buffing paste, but also some is due to the way it’s applied. A rotary tool polishes the surface in a random, non-linear pattern. This tends to scatter or reflect light without indicating a clear texture. There’s no “direction” to the waviness of the surface, so it looks the same no matter the viewing angle or the angle of light.

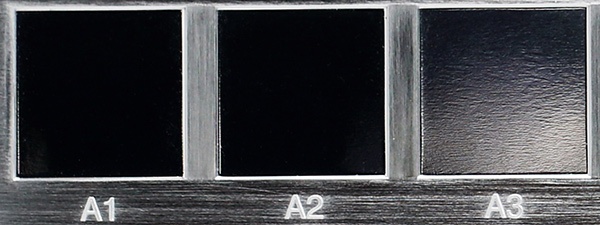

Samples of the A-grade surface finish for plastic injection molding tools at Star Rapid.
PIA A-Grade surface quality

There are 3 levels in the A category, representing different degrees of polish, and within these levels an Ra value is specified for each. As an example, A-3 corresponds to Ra 2~3. Surface flatness is a subject unto itself, but this essentially means it’s very flat.

→ Download Now: The Ultimate Guide to Understanding Surface Texture

Finishes Made By Sandpaper

Now compare this to Category B, made with sandpaper. This kind of surface finish is applied in a back and forth motion, so it leaves behind characteristic linear scratches producing a very obvious pattern. It’s possible to have an SPI surface finish for B-1 which also measures a flatness of Ra 2~3. But this finish doesn’t look the same as A3, nor would the plastic part made from such a tool.

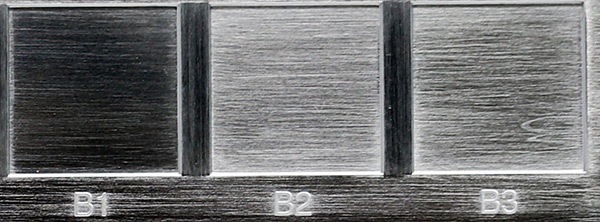

Grade-B surface finish gauge for injection molding at Star Rapid.
PIA B-Grade surface finish

A B-grade surface finish is considered semi-gloss. It’s fine enough to hide mold defects, tooling and machining marks while being less expensive to produce than A-Grade. These finishes are applied with sanding grit ranging from 600 grit for B-1, 400 for B-2 and 320 grit for B-3.

Finishes Made with Grit Stone

The C-Grade finishes are made with grit sanding stones. As with B-grade finishes the grits of the stones also range from 600 to 320, though they leave behind a surface that is rougher and less flat because the stones are more aggressive in their cutting action. Such a process is used to quickly erase tooling and mold marks and will leave behind a matte surface finish on plastic parts.

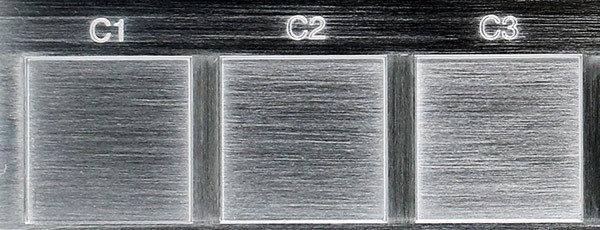

PIA Grade-C surface finish comparators at Star Rapid.
Grade-C surface finish comparators

Finishes Made By Blasting

Rougher finishes are made by abrasive blasting with sand or glass beads. These correspond to SPI class D. Because of the random nature of the spraying, the resulting surface finish is uniform and non-directional. This classification is used to produce dull or flat finishes on plastic parts.

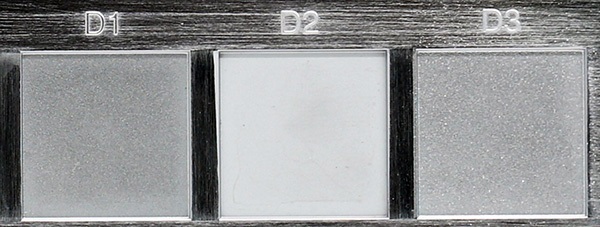

PIA surface finish comparators at Star Rapid
D-Grade surface finish comparators for plastic injection molding

Finishes Made with EDM

In addition to these, there are similar results that can be produced using electronic discharge machining (EDM) or spark erosion. We use both approaches depending on the features and the type of metal being processed. Both processes are measured according to the PIA standards.

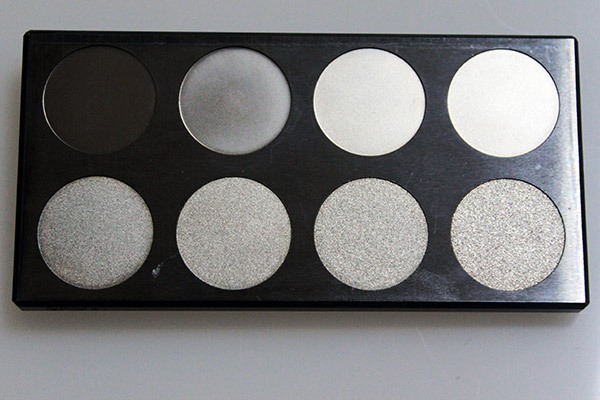

EDM surface finish comparators used at Star Rapid for plastic injection mold tools.
EDM surface finish comparators for plastic injection mold tools.

The top row of 4 examples roughly corresponds to A3-B4 in flatness and finish for injection molding tools, although you can see they are all uniform and without direction. We do not measure the flatness of the bottom row, since these have a surface finish that are rough enough to potentially damage the very sensitive testing equipment.

Skill up and download the ultimate guide on surface texture for free

How To Express the Shine of Your Plastic Injection Molded Part with Gloss

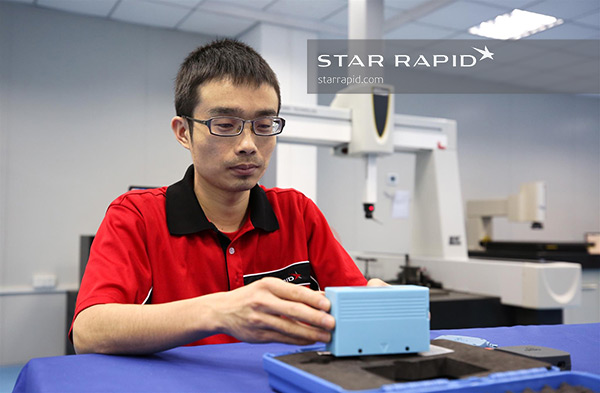

Star Rapid gloss meter calibration
Star Rapid technician calibrating the gloss meter prior to checking a part.

Surface finishes can look different even if the Ra values are similar. To further specify the look you want on your injection molded parts, you should know about gloss. Gloss is defined as the reflectance of a surface compared to a polished black glass standard.

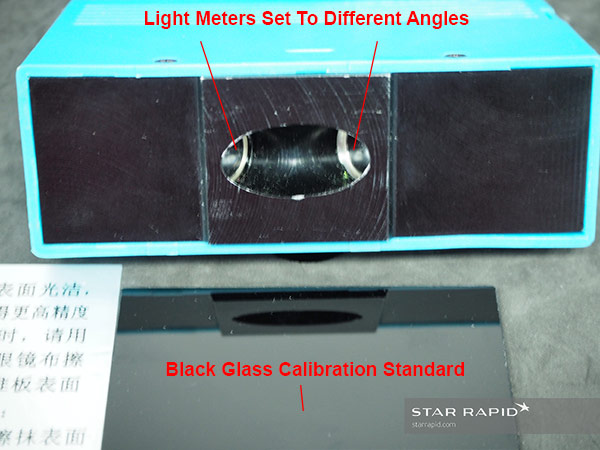

Gloss meter in use at Star Rapid
Gloss meter for measuring surface shine on plastic injection molded parts.

We use a simple measuring device called a gloss meter. It bounces a light off the surface of a sample, at different angles depending on the Ra value being tested. The measurement values are called gloss units or GU. The black glass standard is rated as 100, so measured gloss units from a target part are compared to this reading.

From these gloss readings it’s then possible to describe a surface as high-gloss, semi-gloss, matte or flat. Taken together with a PIA mold surface number, this is the information that we need to texture your mold tools so you get the finished injection molded parts that you want.

Are you ready to make your prototype or part?

The above information is for standard finishes. But if you have a special requirement you can specify your custom needs when you upload your CAD drawings for a free quote.
