E3design Smart Watch Cover Case Study

Services: Mold making- EDM machining, CNC machining, SandblastingPlastic Injection Molding
Mold Material: 7075 aluminum
Part Material: PC/ABS plastic resin
Lead Time: 10 days

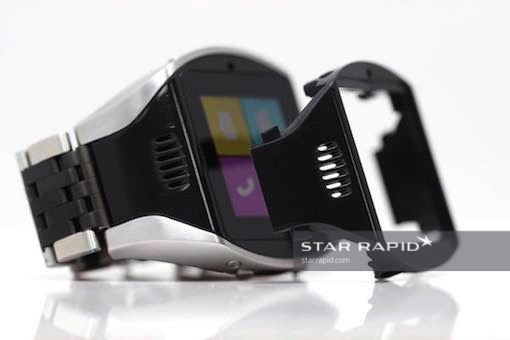

The final Orsto MK3 Smart Watch

About The Client

e3design is a UK-based consultancy specializing in industrial and consumer product design and development. They love to work with clients who need to go from the initial idea stage to a fully-realized and manufacturable product ready to bring to market.

The Project

e3design’s client approached them with a great idea for an innovative wearable and interactive watch. But going from a sketch to a product that can be manufactured requires a lot of reverse engineering and detailed analysis. After a thorough design for manufacturing review between Star and e3design, a finalized 3D CAD file was produced. But the challenge now became, how to make the physical prototype in time for an upcoming trade show where the concept would be launched? Time was of the essence.

About The Product

The smart watch is a design prototype for an interactive wearable watch that connects via an app to a smartphone, allowing the user to send and receive emails, place hands-free phone calls, listen to music and more.

Watch How This Part Was Made

One Man One Mold

The only way to meet our strict deadline was to use our exclusive OMOM® service. This joins a single master tool maker with the entire tool build, from start to finish. One craftsman is responsible for optimizing all resources at their disposal to work to their maximum efficiency without interruption. To achieve the fastest results, it’s also necessary that the tool design be accepted “as is”. No alterations would be allowed once the work began.

The toolmaker needed to make three distinct parts: the top case and two versions of the bottom case (regular and thin).

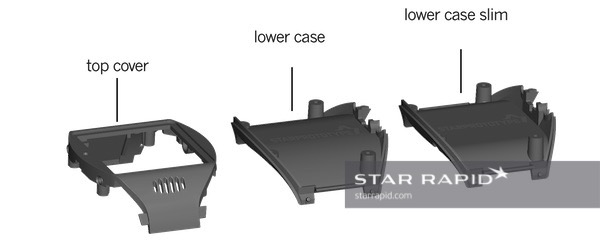

The 3D drawings of all three parts

Mold Tool Design

We decided to build two separate tools, one for the top cover and another double-cavity tool for both versions of the bottom cover.

The mold material was Al-7075. This high-grade aluminum machines fast and well, and is robust enough to inject 10K+ parts if required. Had we been injecting more abrasive plastic resins, we would have opted for a semi-hardened tool steel like NAK80 or P20.

Both mold tools are able to fit into our modular mold base, or Master Unit Die. This is one way that OMOM® is able to make tools so quickly, since there’s no need to expend energy on creating a custom die to fit into our plastic injection molding machine. The machinist need only concentrate on the core and cavity.

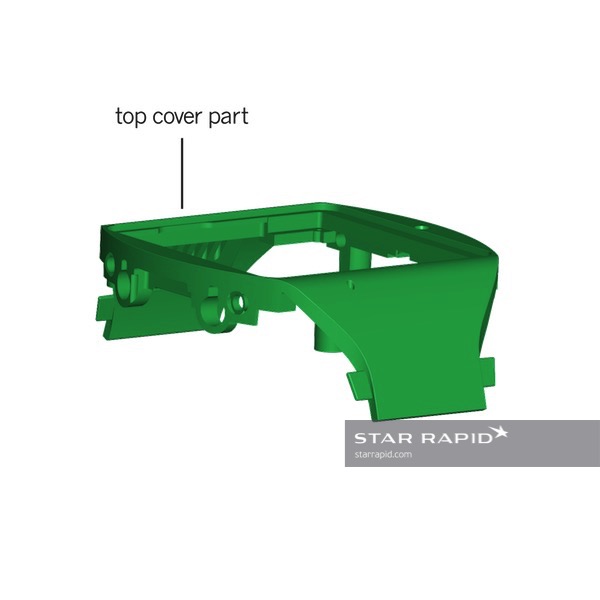

The 3D drawing of the part: 'Top Cover'

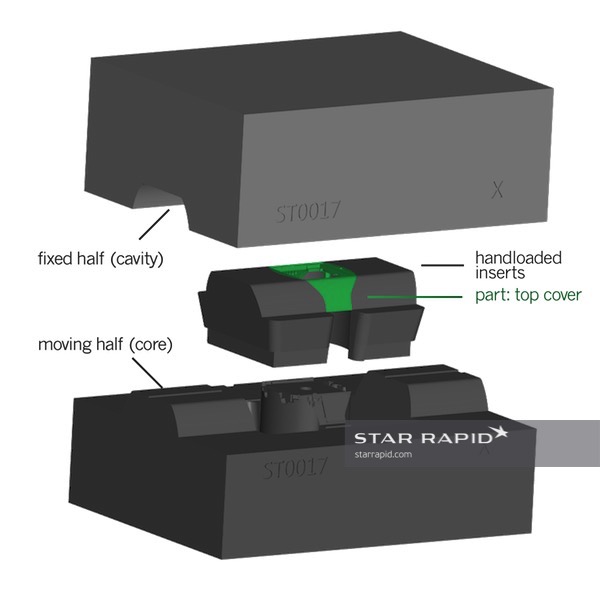

The 3D Explosion of the mold including the plastic part 'top case'

Positive Material Identification

At the same time the tool was being designed, our quality inspection team qualified the 7075 aluminum tooling material. We used an Optical Emission Spectrometer (OES) and an X-Ray Fluorescence gun, both from Oxford Instruments, to ensure exact compliance of all metal materials to our specifications. This degree of testing is unfortunately seldom employed in manufacturing in China, but it should be mandatory worldwide.

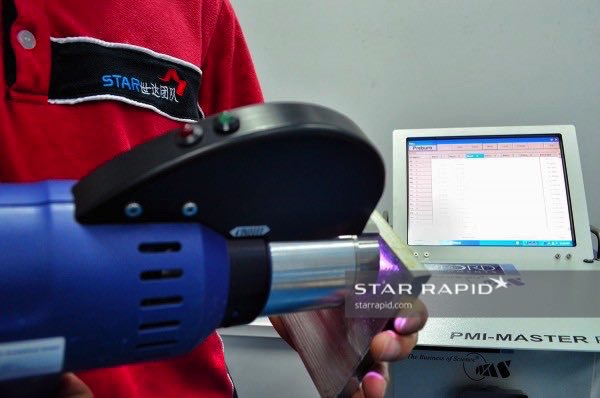

We use a OES machine to get a detailed report of the metal alloy composition

Plastic Injection Molding

The mold tools were placed one at a time into our Mold Unit Bases, and then loaded into the plastic injection machine. We used black pre-colored PC/ABS thermoplastic for all molded parts. This material combines the best advantages of both, excellent workability and mechanical performance.

When molding the top cover, the handloaded inserts were ejected from the die with the part still attached. We removed the parts by hand and then reloaded the inserts for the next cycle. This would be too time-consuming an operation for mass production but is acceptable for small batch runs.

The bottom cases were cleanly ejected from their respective cores without requiring additional hand loading.

After molding, all pieces were carefully trimmed of any excess flash, we thoroughly cleaned and inspected them, and they were shipped to the customer in time for their critical show time.

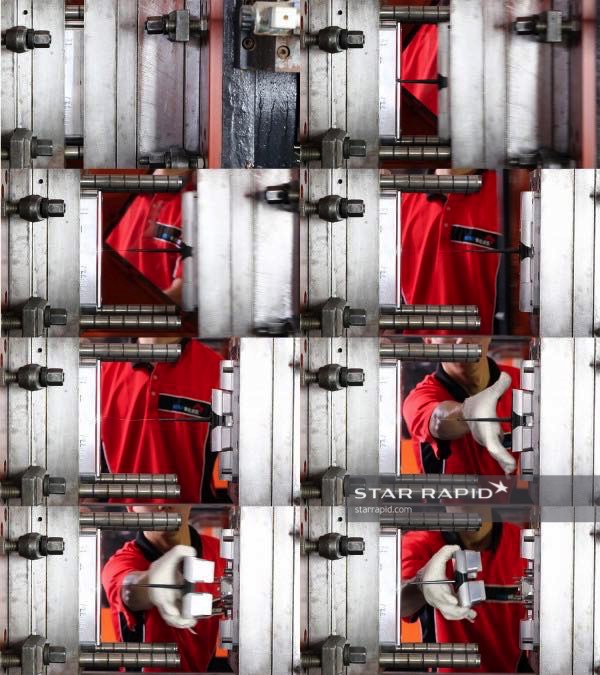

A picture series of the mold opening and the handloaded inserts being taken out manually

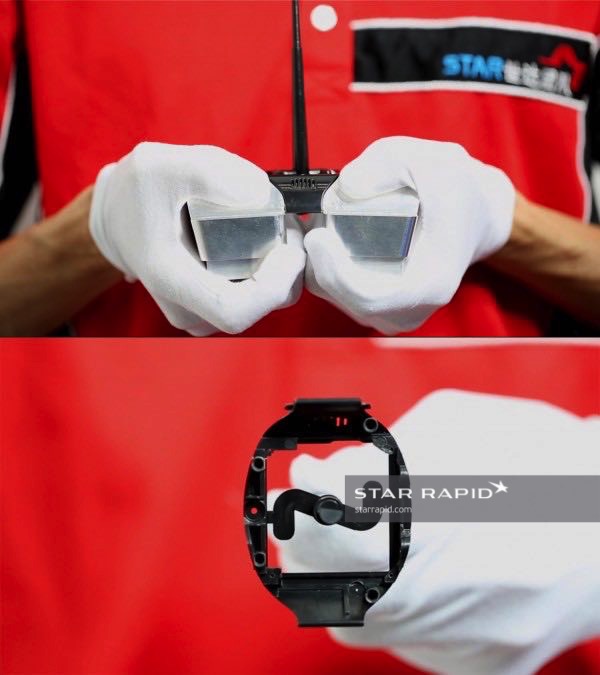

Removing the handloaded inserts from the molding 'Top Cover'. The plastic in the middle is still to be removed

Finished Molds And Parts

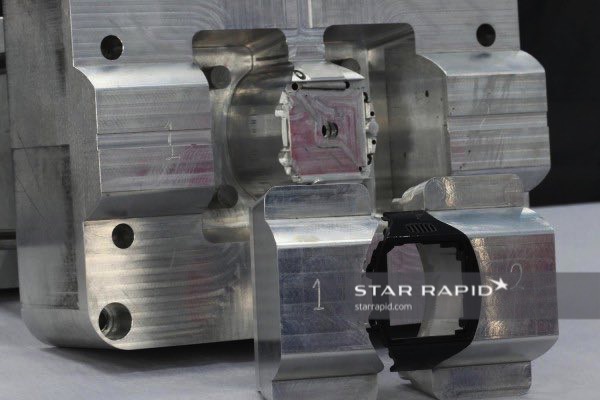

Detailed view of the first mold
Detailed View Of The First Mold

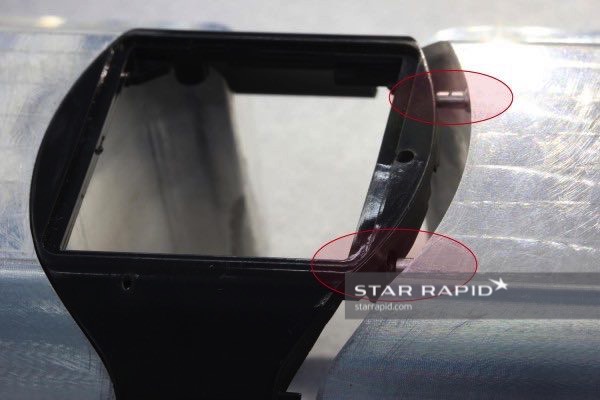

Hand-loaded Inserts
Hand-loaded Inserts

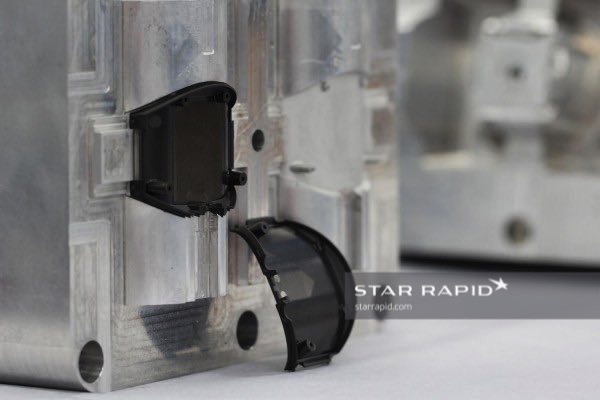

watch mold details
Watch Mold Details

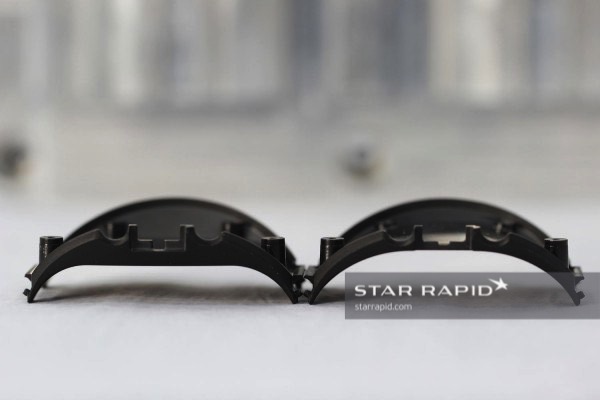

Detailed View of the Molded Parts
Detailed View of the Molded Parts
