What is CNC Milling? Everything You Need to Know About CNC Milling

Countless products today, from smartphones to supersonic jets, are made possible because of the reliability and versatility of CNC milling. It’s an ideal method for rapid prototyping, as well as volume manufacturing in plastic and metal. Let’s take a closer look at some of the remarkable advantages and applications for CNC milling.

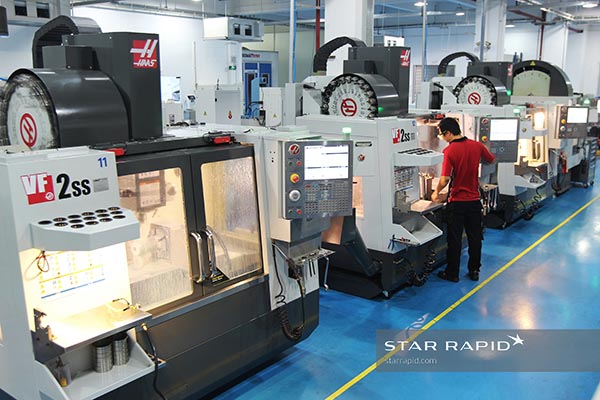

CNC tool room at Star Rapid

What is CNC milling?

CNC milling is a manufacturing process that uses a cutting tool mounted on a rotating spindle to selectively remove material from a block of raw substrate. The workpiece is rigidly mounted to a table, and this table moves or rotates on different planes so the tool can work at many angles. Sophisticated CNC milling machines can have 5 or more axes of independent motion to make more complex shapes or to avoid having to move the workpiece to a separate machine.

What are the Axes of Motion on a Typical CNC Milling Machine?

The axis of motion for a CNC milling machine are based on an X-Y-Z coordinate measuring system. All machinists refer to this when describing the basic movements of the mill, relative to an operator facing the machine. A standard CNC mill for example has three axes. The milling spindle represents the Z-axis, moving up and down. The X-axis is left-to-right, and the Y-axis is front-to-back.

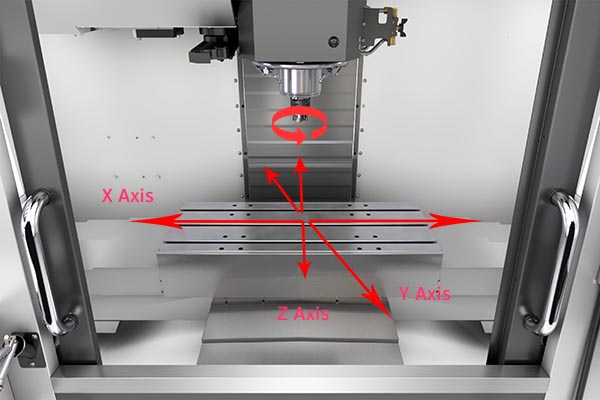

CNC mill coordinate system on Haas VF-2SS mill

Rotary tables can be added to CNC milling machines to provide additional movements, while 5-axis machines already have rotating work tables built-in.

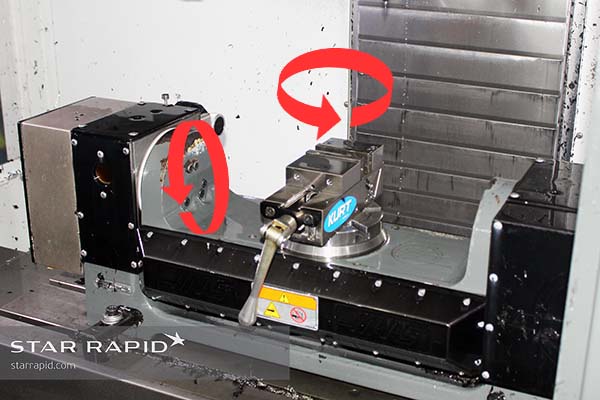

Haas rotary table mounted in VF-2SS mill

What are the Advantages of Computer Numeric Control For CNC Milling?

All of these movements of CNC mills rely on Computer Numeric Control, which is a computer program derived from a 3D digital file of the desired finished part.

 Early automated machine tools relied on punch cards to control their basic movements in a systematic fashion. This technology worked but it was a slow and cumbersome system and punch cards could not be modified once made. These were later replaced by magnetic tapes, disk drives and now fully digital instructions in G-Code.

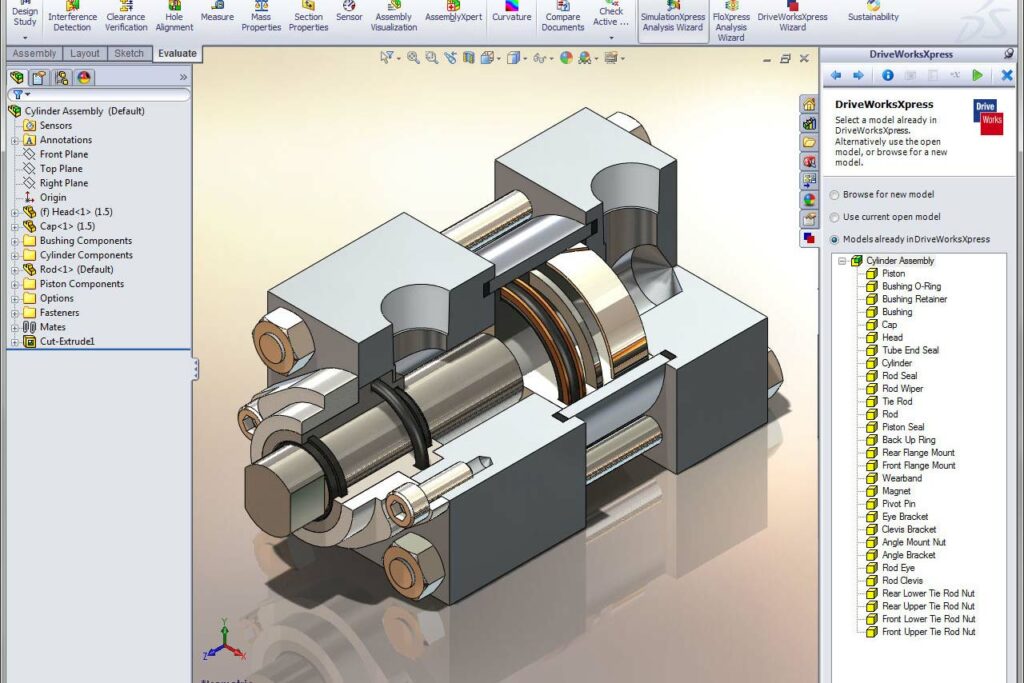

CAD image detail from Solidworks
Image courtesy of Solidworks

This control system is not only fast and accurate but, unlike earlier systems, it can be easily modified as needed, line-by-line and in real time, in order to fine-tune the machining program for the best CNC milling results.

What are the Benefits of Automatic Tool Changers for CNC Milling Machines?

Making a finished part from a block of material requires many different tools, each of them performing a very specific CNC machining function. Changing these tools one at a time by hand would be prohibitively time-consuming and inefficient.

To counter this, CNC milling machines have rotating carousels where all the needed tools are pre-loaded on separate holders. When needed, these CNC milling and machining tools can be exchanged automatically on the spindle within a few seconds.

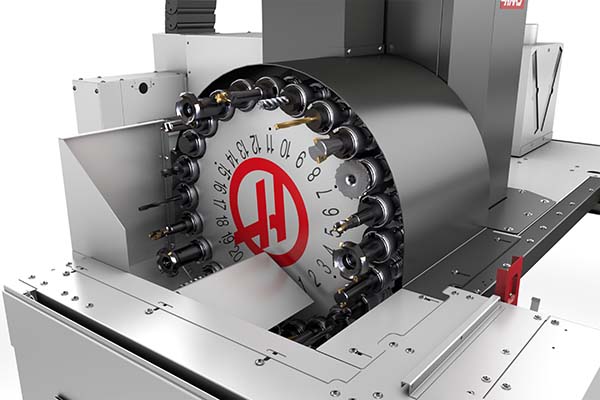

VF-2SS tool holding carousel
Haas VF-2SS tool holding carousel

The carousel on this Haas VF-2SS mill can hold a maximum of 30 tools, plus one on the spindle. This guarantees that all conventional CNC milling operations can be performed in one set-up. We further improve on this efficiency by using an automated tool dispensing system from Guhring. With more than ten thousand cutters in storage we are always assured of having the right CNC machining tool for every milling and CNC turning job.

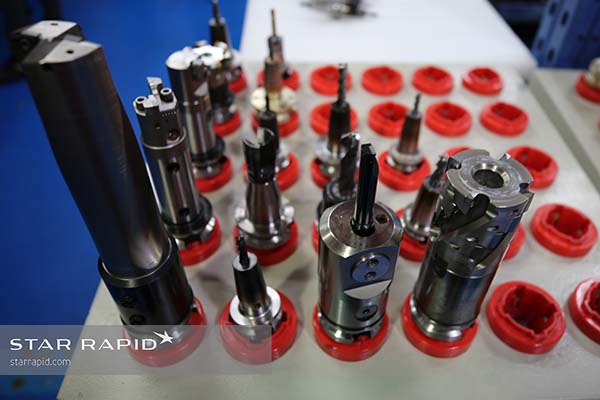

CNC mill cutters mounted on tool holders at Star Rapid
A variety of pre-mounted cutting tools

The Importance of Workpiece Holding for CNC Machining Centers

On a CNC machining center, the workpiece is mounted in a fixed position on a work table while the tool is moved around it. This is the fundamental difference from CNC turning on a lathe, where the workpiece spins while the tool remains stationary.

Because of this fundamental difference in motion, parts are held in place in very different ways on these two machines. In CNC turning, for example, all parts are mounted on a spindle. They are concentric and therefore held securely by a three-jaw chuck right down the centerline of the part, the same way every time. The same is not true for CNC milling, where different holding strategies are needed.

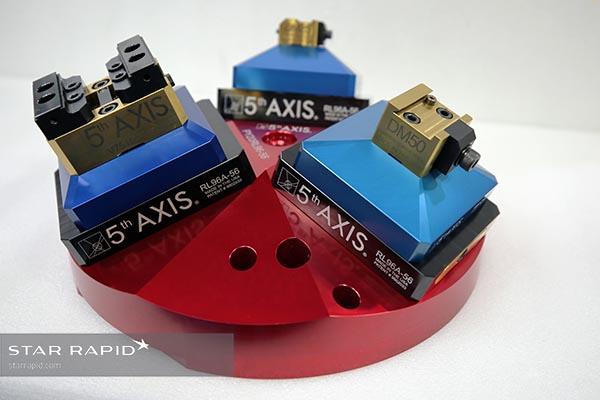

5-axis table mount for CNC machining at Star Rapid
5-axis tool mounting system

Simple rectangular shapes are easy to hold in place, either by being mounted in a machinist’s vice or clamped directly to the table’s surface.

However, other unusual shapes or parts may require custom holding fixtures which can make a CNC machining project more complex and time consuming. We have designed several of our own which were later patented.

How Does CNC Milling Help You Get Great Parts?

Symmetrical parts that are essentially round or radial are best machined on a CNC turning center for maximum efficiency and precision. But most parts we work with are not round or symmetrical so they must be machined on a mill.

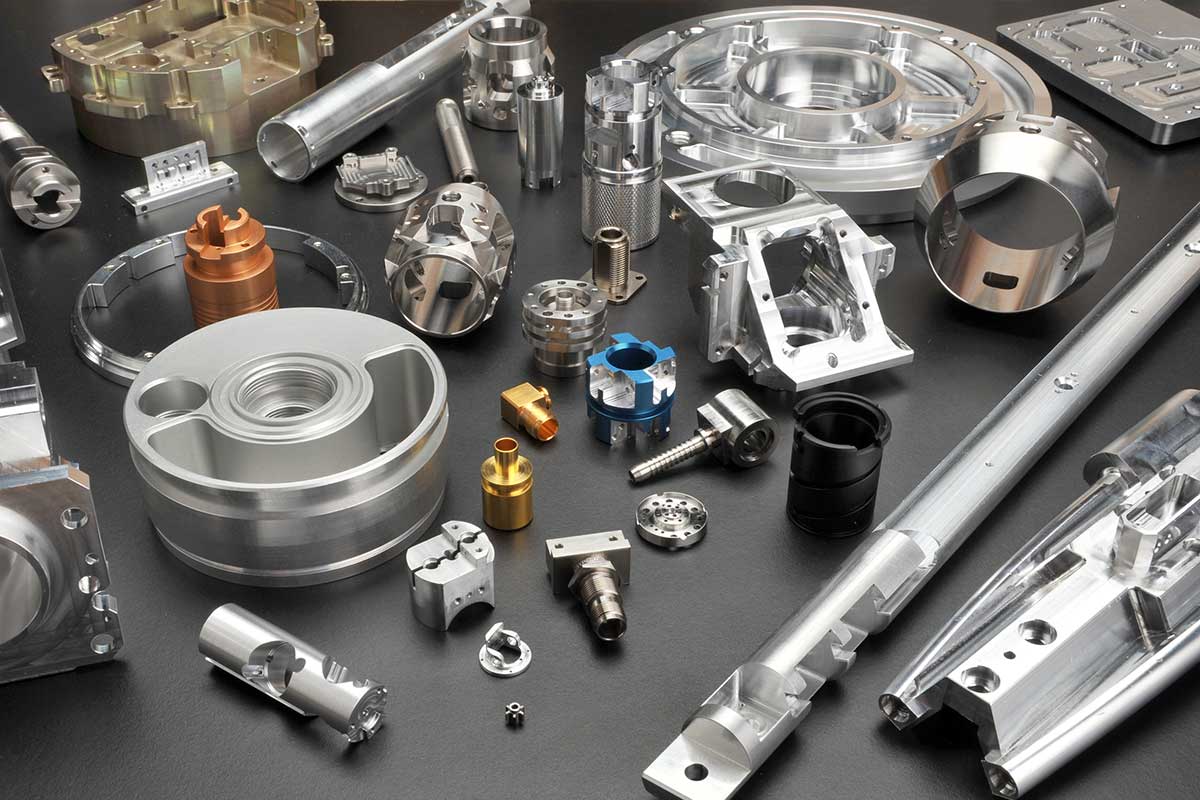

Collection of CNC milled parts from Evden
Image courtesy of evden.com

Multi-axis mills are unrivalled for creating square shapes, bevels, angles, slots and complex curves – any subtractive machining process can be done on a mill, including making round shapes. They are also accurate, routinely holding tolerances of .01mm or 10 microns. We have a wide variety of stock materials for any application and offer the best incoming material inspection and testing service.

When you upload your CAD files to Star Rapid for a free quotation, not only will you get great parts and prototypes fast, you get peace of mind about the custom manufacturing services we provide.
